IPsec Site-to-Site VPN Setup Guide

TestMu AI supports connectivity via IPsec Site-to-Site VPN (S2S VPN) for clients who need to test web applications hosted on internal/private networks that are not publicly accessible. This allows TestMu AI cloud infrastructure to reach your privately hosted test environments directly over an encrypted, authenticated tunnel — just as if both networks are on the same LAN.

Executive Summary

An IPsec Site-to-Site VPN creates a permanent, encrypted tunnel between your network gateway and TestMu AI cloud, enabling secure access to internal staging environments, development servers, and private applications without exposing them to the public internet.

What is IPsec Site-to-Site VPN?

An IPsec Site-to-Site (S2S) VPN creates a permanent, encrypted tunnel between two network gateways, allowing devices on both networks to communicate securely as if they were on the same Local Area Network (LAN).

Key Concepts

• Gateway-to-Gateway: Unlike remote access VPNs (user-to-device), S2S VPN connects entire networks. It does not require software installation on individual test machines.
• Persistence: The tunnel is "always on," automatically re-establishing connection if interrupted.
• Technology: It utilizes the IPsec suite, specifically IKEv2 for secure key exchange and ESP in Tunnel Mode for data encapsulation and encryption.
• Use Case: It enables TestMu AI cloud nodes to access private URLs (e.g., http://192.168.10.5/myapp or http://internal.company.com) that are not accessible via the public internet.

Network Architecture

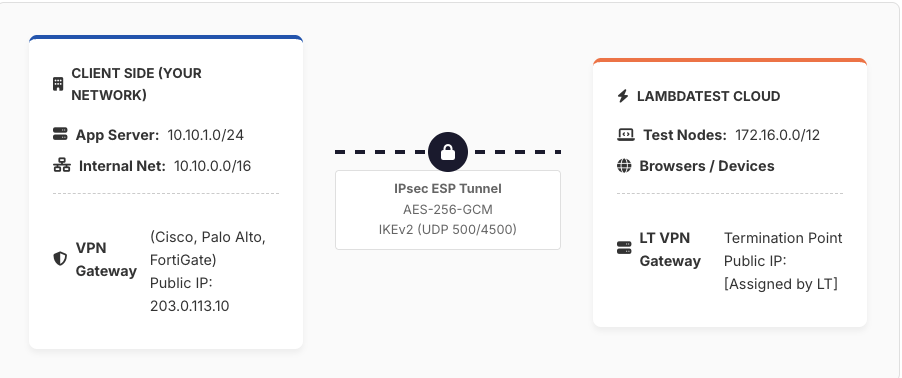

The diagram below illustrates the secure connection between your internal network and TestMu AI's cloud infrastructure.

Traffic Flow Steps

1. TestMu AI test node initiates HTTP request to internal URL (e.g., http://10.10.1.50).
2. Traffic is routed to TestMu AI VPN Gateway based on routing table.
3. VPN Gateway encapsulates packet in IPsec ESP Tunnel Mode (encrypted).
4. Encrypted packet traverses the public internet to Client's Public IP.
5. Client's VPN Gateway decrypts the packet (ESP decapsulation).
6. Request is forwarded to the internal web server.
7. Response follows the reverse path back to the test node.

IPsec Protocol Suite

IPsec Overview

IPsec (RFC 4301) secures IP communications. For S2S VPNs, we use Tunnel Mode, which encapsulates the entire original IP packet within a new IP packet, protecting both the payload and the original header.

IKEv2 (RFC 7296)

Internet Key Exchange Version 2 is responsible for negotiation and authentication.

• Phase 1 (IKE_SA_INIT): Negotiates cryptography (DH group, encryption) and generates keying material.
• Phase 2 (IKE_AUTH): Authenticates peers and establishes Child SAs for traffic.
• Ports: UDP 500 (Initial), UDP 4500 (NAT Traversal).

ESP (RFC 4303)

Encapsulating Security Payload provides confidentiality (encryption) and integrity. It operates as IP Protocol 50.

NAT Traversal (NAT-T)

Standard ESP cannot pass through NAT devices. RFC 3948 solves this by encapsulating ESP packets inside UDP packets on port 4500. This is automatically detected and negotiated during IKEv2 setup.

Recommended Security Parameters

Parameter	Recommended Value	Notes
IKE Version	IKEv2	IKEv1 is deprecated
Encryption (Phase 1)	AES-256-GCM or AES-256-CBC	NIST SP 800-77r1 approved
Encryption (Phase 2)	AES-256-GCM	Preferred AEAD cipher
Integrity (Phase 1)	HMAC-SHA-384	SHA-1 is deprecated
Diffie-Hellman Group	Group 14 (Min) / Group 20 (Preferred)	Groups < 14 are insecure
PFS	Enabled	Perfect Forward Secrecy
SA Lifetime (Phase 1)	28800 seconds (8 hours)	Standard enterprise setting
SA Lifetime (Phase 2)	3600 seconds (1 hour)	Renegotiate frequently
DPD	Enabled	Dead Peer Detection

Firewall / Port Requirements

The following ports must be permitted on your external firewall between the Client Gateway Public IP and the TestMu AI Gateway IP.

Protocol	Port	Direction	Purpose
UDP	500	Bidirectional	IKE/ISAKMP Negotiation
UDP	4500	Bidirectional	NAT-Traversal & ESP Encapsulation
IP Proto 50	N/A	Bidirectional	ESP (If no NAT is present)
TCP/UDP	80, 443	Client → TestMu AI	Allowed Test Traffic (HTTP/HTTPS)

S2S VPN vs. SSH Tunnel Comparison

Feature	S2S IPsec VPN	TestMu AI SSH Tunnel
Connectivity	Gateway-to-Gateway (Permanent)	Client-Initiated (Session-based)
Client Software	None (Router Config)	Requires LT Binary/App
Scope	Entire Network/Subnets	Local Machine only
Best For	Enterprise / Permanent Staging	Ad-hoc / Dev Testing

Client Coordination

Network Team Involvement Mandatory

Setting up an IPsec Site-to-Site VPN is NOT a self-service process. It requires configuration on your organization's edge firewalls/routers.

Required Actions by Client Team

1. Gateway Configuration: Configure on-premise device (Cisco, Fortinet, Palo Alto, etc.) with provided parameters.
2. Firewall Rules: Permit UDP 500/4500 from TestMu AI IP.
3. Routing: Add static routes directing traffic for TestMu AI subnets into the tunnel.
4. Security Approval: Obtain internal change management approval.

Timeline: Typical setup takes 3–10 business days depending on internal client approvals.

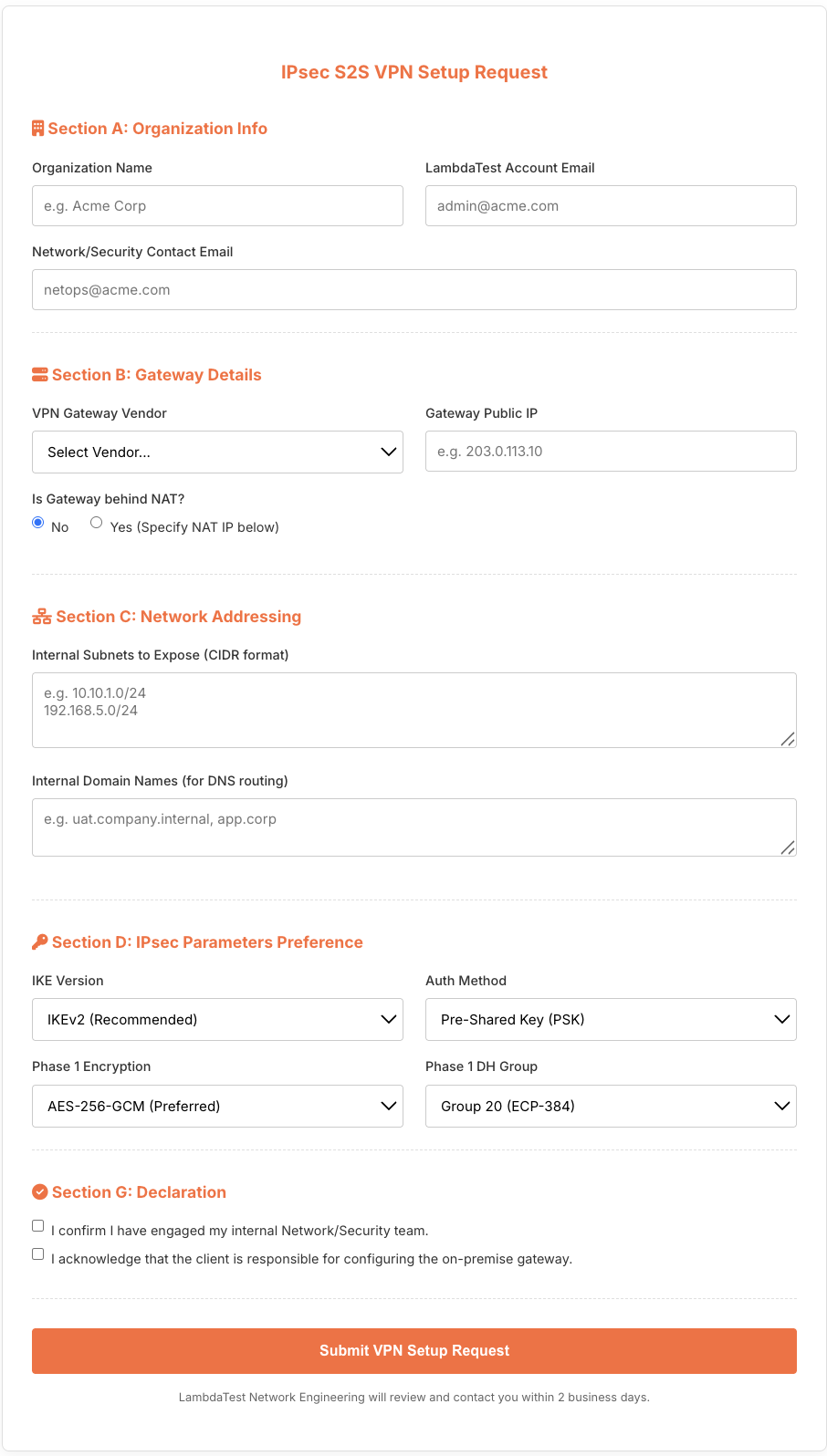

S2S VPN Requirement Gathering

To initiate the VPN setup process, please gather the following details from your Network/Security team and share them with TestMu AI support at [email protected].

Organization Info

Field	Description	Example
Organization Name	Your company or organization name	Acme Corp
LambdaTest Account Email	The email associated with your TestMu AI account	[email protected]
Network/Security Contact Email	Email of the technical contact from your network or security team	[email protected]

Gateway Details

Field	Description	Example
VPN Gateway Vendor	The vendor/make of your on-premise VPN gateway or firewall device	Cisco, Fortinet, Palo Alto, AWS, Azure, etc.
Gateway Public IP	The public IP address of your VPN gateway	203.0.113.10
Is Gateway behind NAT?	Whether your gateway sits behind a NAT device. If Yes, provide the NAT IP address	No / Yes (specify NAT IP)

Network Addressing

Field	Description	Example
Internal Subnets to Expose	The private subnets (in CIDR format) that TestMu AI test nodes need to reach. List one per line	10.10.1.0/24, 192.168.5.0/24
Internal Domain Names	Internal domain names that should be routed through the VPN tunnel (for DNS routing)	uat.company.internal, app.corp

IPsec Parameters Preference

Parameter	Options	Recommended
IKE Version	IKEv1 / IKEv2	IKEv2 (Recommended)
Auth Method	Pre-Shared Key (PSK) / Certificates	Pre-Shared Key (PSK)
Phase 1 Encryption	AES-256-GCM / AES-256-CBC / AES-128-GCM	AES-256-GCM (Preferred)
Phase 1 DH Group	Group 14 / Group 19 (ECP-256) / Group 20 (ECP-384)	Group 20 (ECP-384)

Submit Your Request

Send the above details to [email protected] to submit your VPN setup request. TestMu AI Network Engineering will review and contact you within 2 business days.

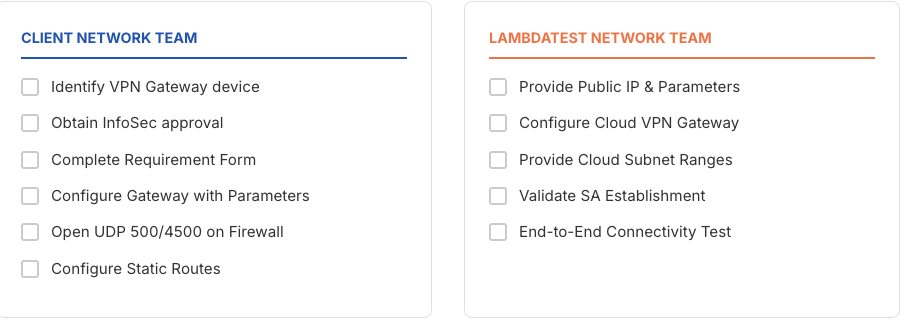

Implementation Checklist

Setup involves parallel work from both teams. Use the checklists below to track progress.

Client Network Team

• Identify VPN Gateway device
• Obtain InfoSec approval
• Complete Requirement Form (see above)
• Configure Gateway with Parameters
• Open UDP 500/4500 on Firewall
• Configure Static Routes

TestMu AI Network Team

• Provide Public IP & Parameters
• Configure Cloud VPN Gateway
• Provide Cloud Subnet Ranges
• Validate SA Establishment
• End-to-End Connectivity Test

Troubleshooting

Issue	Possible Cause	Resolution
Tunnel not establishing	Firewall blocking UDP 500	Ensure UDP 500 is open bidirectionally
IKE Auth Failed	PSK mismatch	Verify Pre-Shared Key matches exactly
TS_UNACCEPTABLE	Subnet mismatch	Verify Traffic Selectors (subnets) match on both sides
Tunnel Up, No Traffic	Missing Route	Add route for TestMu AI subnet via tunnel interface
Drops Frequently	NAT Timeout	Enable NAT-T keepalives; check DPD

References & Standards

• RFC 4301: Security Architecture for the Internet Protocol (IPsec)
• RFC 7296: Internet Key Exchange Protocol Version 2 (IKEv2)
• NIST SP 800-77 Rev. 1: Guide to IPsec VPNs
• FIPS 140-3: Security Requirements for Cryptographic Modules

---

For VPN setup assistance, contact: [email protected]
